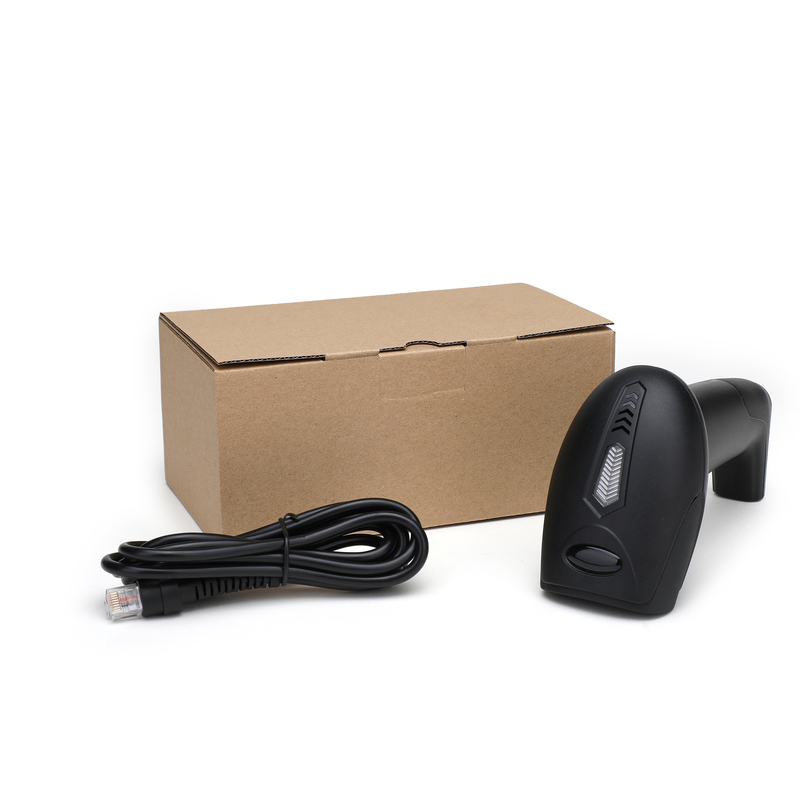

CCD   Barcode scanner                      module:10

Performance parameter

Sensor   :

1500   Pixel

Scanning   method:

manual

Scanning   speed:

300   times/s

Focusing:

red LED

Reading   precision:

(>   4MIL)

Scanning   angle:

Rotation   360°, Tilt 55°,   Pitch 55°

Visual   Indicator:

LED & buzzer

Supported Bar code

1Dbar   ode: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved   2 of 5,5,ITF-6,ITF-14,ISBN,ISSN,

MSI-Plessey,GS1   Databar,GS1 Composite Code,Code 11,Industrial 25,Standard 25,Standard   25,Plessey, Matrix 2 of 5

Interface

Communication Interface:

USB

Physical parameters

SIZE:

L(164)*W(65)*H(98)MM

Weight :

138G( not including the cable)

Visual Indicator:

Two-color LED lamp&buzzer

Voltage:

DC: 5V

Current:   working

current:    65MA,Standby

current:   65MA,Standby

current:    85MA

Environmental parameters

Working   temperature:

-20℃+50℃

Storage   temperature:

-20℃+70℃

Relative   Humidity:

5%~95%   (Non-condensing)

Ambient   illumination:

0-10000   LUX

Electrostatic   Protection :

4KV (Direct Discharge) 10KV (Air Discharge)

Drop/Shock   Resistance:

withstands   multiple times 1.2 meters drops to concrete

Protection   Level :

IP54
