2.4G Wireless scanning gun
2.4G Wireless scanning gun
- Detail
- Parameters

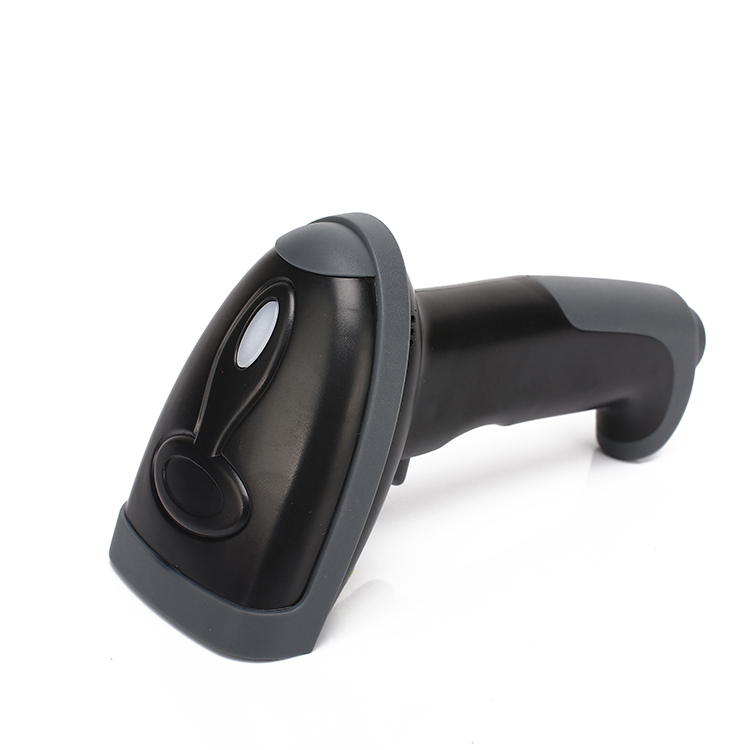

HY-1880W 2.4GWireless scanning gun
Appearance description | |
| All independent intellectual property rights |
Extremely comfortable handle | |
Intelligent AGC control | |
Rich variety of decoding | |
Button life up to 2 million times | |
Compact and lightweight size, extremely comfortable operating feel
| |
performance parameter | |
Type of light source | Visible laser diode, wavelength 650nm |
Scanning mode | Single line scanning |
scanning speed | 200 + 2 times per second |
Scanning precision | 0.10mm（pcs0.9） |
Scanning width | 30mm﹫Scanner window， 220mm﹫200mm |
Scan depth | 0-480mm (0.33mm.PCS 90%) |
transmission distance | Straight line 20 meters |
channel | 01-20（20 channels available） |
Transmit power | -2dbm-4dbm |
storage | 512K(4000 bar code can be stored in the calculation of 13 characters) |
input voltage | 4.7V-5V |
working voltage | 3.3V |
Battery | 1100MAh |
corner | 30° |
elevation | 65° |
Deflection | 55° |
Decoding capability | EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，Codaber，Industoal 2 of 5，Interleave 2 of 5，Matrix 2 of 5，MSI，GS1中国邮政码等。 |
Support interface | RS232,USB Such interface. |
Printing contrast | Minimum 30% reflection difference |
error rate | 1 / 5 million |
Lift mode | Buzzer, indicator light |
Scanning mode | Automatic induction mode of key mode continuous scanning mode |
Physical parameter | |
Outline dimension | Length * width * height:180mm×70mm×90mm |
weight | 150g |
Texture of material | ABS+PTR |
